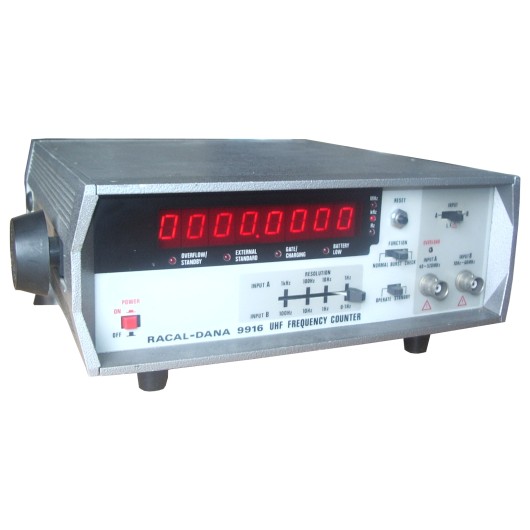

Racal-Dana 9916 UHF Frequency Counter

The 9916 is an 8 digit, 520 MHz frequency counter designed for servicing and calibrating mobile communications equipment and AM/FM broadcast equipment. Features include auto gain control AGC on both input channels, frequency burst mode for measurement of short duration signals and data output. Full RFI flitering and shielding allow the 9916 to be used in high RFI environments.

    SPECIFICATIONS
  • Frequency Range ch A - 40 MHz to 520 MHz / ch B - 10 Hz to 60 MHz
  • Coupling: AC
  • Input impedance: ch A - 50 ohms, ch B - 1 Mohm in parallel with 25 pF
  • Sensitivity Sinewave: 10 mV rms
  • Max Operating Input: ch A - 5 V rms, ch B - 10 V AC p-p
  • Max Safe Input: ch A - 35 V rms, 25 W. ch B - 250 V rms up to 10 kHz, 50 V rms up to 100 kHz, 10 V rms above 100 kHz, 400 V DC

Date of Manufacture: Unknown

Quantity Available: 1

Working Condition: Working
Physical Condition: Good
Original Box: No

Racal-Dana 9916 UHF Frequency Counter Prop For Hire
